NPDL-C10211011

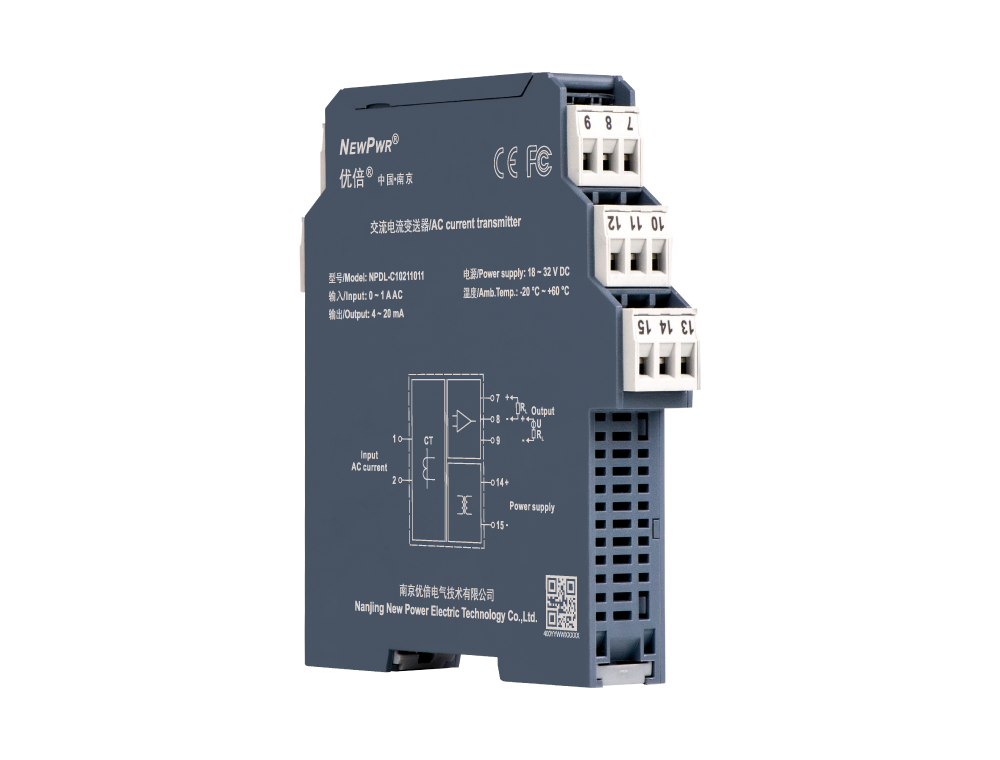

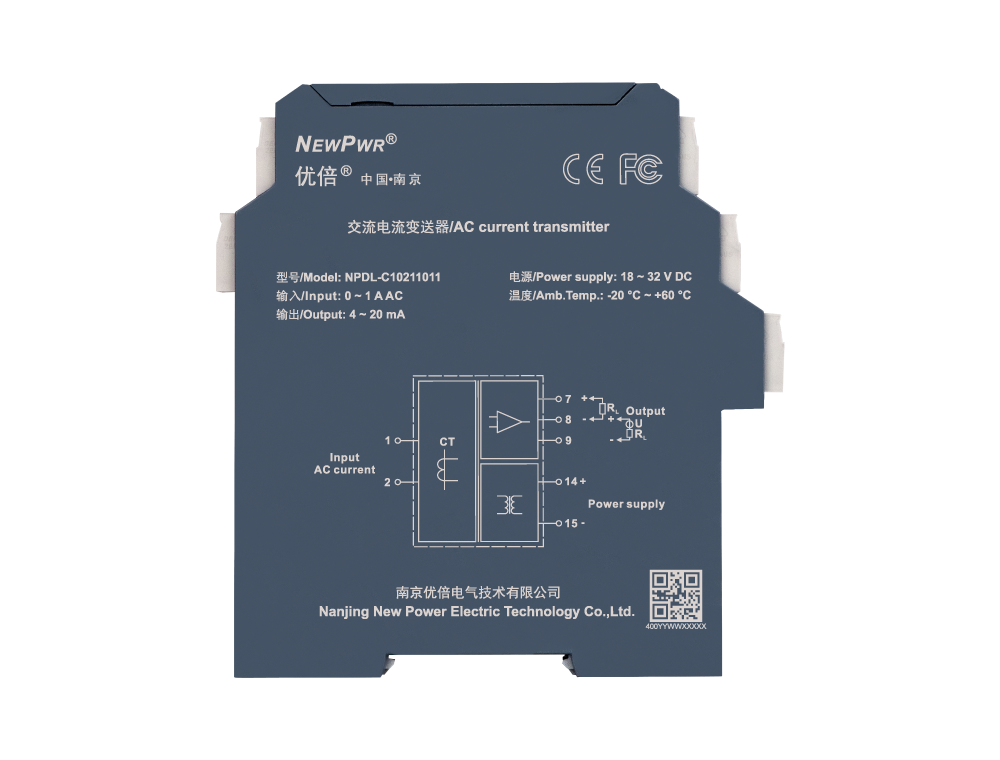

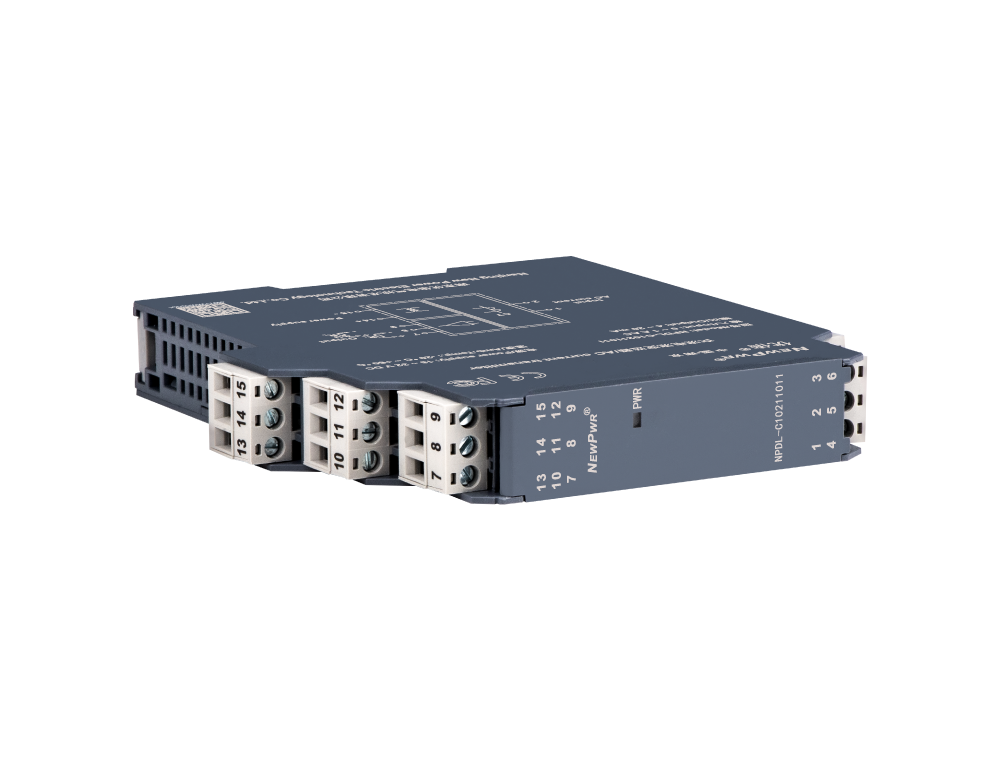

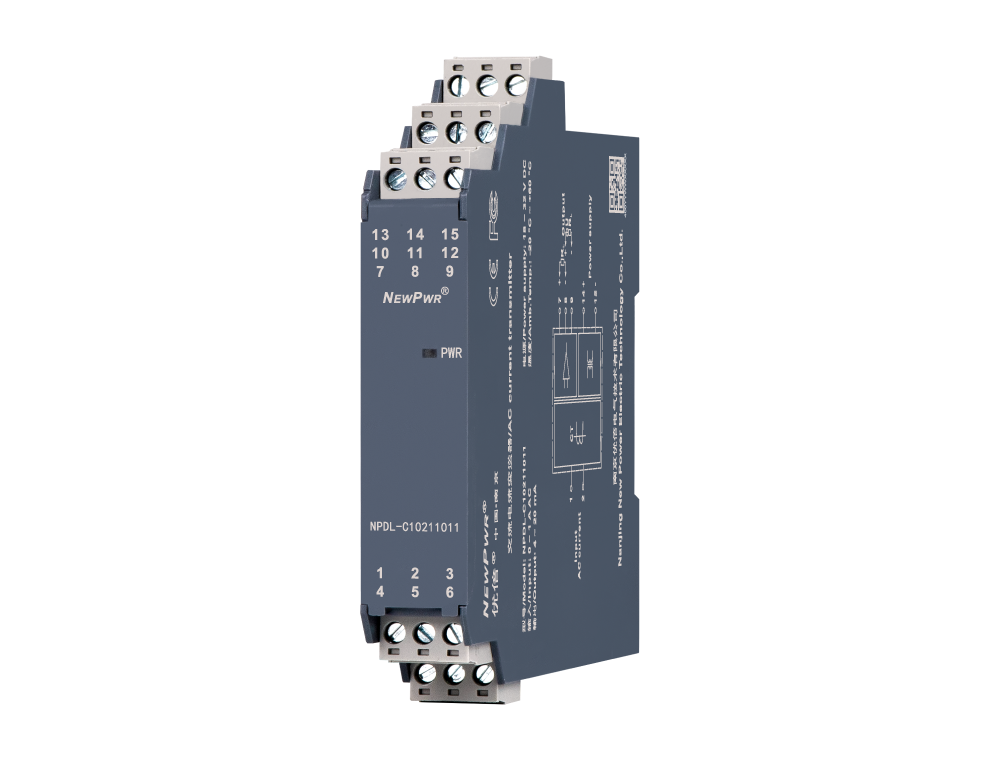

This TRMS AC current transmitter converts the 0 ~ 1 A AC signals to current signals. It needs an independent power supply. The input, output, and power supply are galvanically isolated from each other.

Input signal

Output signal

Power Supply Mode

Share
NPDL-C10211011
Supply
Power supply 18 ~ 32 V DC
Input
Input signal 0 ~ 1 A AC
Frequency range 40 Hz ~ 1 kHz
Overload capacity double input nominal value
Output
Output signal 4 ~ 20 mA
Load resistance RL ≤ 550 Ω
Transfer characterisics
Accuracy 0.2 %F.S.（0 ~ 120%）
Temperature drift 50 ppm/℃
General parameters
Response time ＜ 330 ms
Power dissipation ＜ 1W
EMC data
Electromagnetic compatibility IEC 61326-3-1
Dielectric strength ≥ 1500V AC (Input /Output/Power supply)
Insulation resistance ≥ 100 MΩ (Input /Output/Power supply)
Operating conditions
Operation temperature -20 ℃ ~ +60 ℃
Storage temperature -40 ℃ ~ +80 ℃
Mechanical specifications
Connection method Screw connection
Dimension 17.8mm (W) × 110mm (H) × 117mm (D)
Mounting type DIN35 mm
Certified data
Product approvals CE, FCC
